WORK PIECE FEEDING AND CLAMPING
PRE BENDING TO LEADING EDGE
PLATE TRAILING EDGE INSERTED AND CLAMPED
PLATE TRAILING EDGE PRE BENDING
ROLLING PROCESS STARTS
ROLLING IN PROGRESS
ROLLING COMPLETE
| Sr. No | Particular | Remark |
|---|---|---|
| MODEL CODE | 3 R PAMH | |
| 1 | PRE BENDING | YES |
| 2 | ROLLING/BENDING | YES |
| 3 | MAX ROLL WIDTH | 4000 MM |
| 4 | MINIMUM THICKNESS | 5 MM |
| 5 | MAX. THICKNESS | 80 MM |
| 6 | PRODUCTION RATE | NA |
| 7 | TOP ROLL UP DOWN FOR RADIUS FORMING | BY HYDRAULIC CYLINDER |
| 8 | SIDE ROLL ROTATION | BY HYDRAULIC MOTOR |
| 9 | ROLL POSITION INDICATOR | DIGITAL INDICATOR |
| 10 | ALL FUNCTIONS ACTUATION | MOBILE CONTROL VALVES |
This is low cost machine model available with pre bending facility and most useful for small and medium fabrication workshop.
Autotrans Systems, a leading hydraulic plate rolling machine manufacturer, specializes in designing and producing top-notch machines for a range of industrial applications. We provide dependable and effective solutions to satisfy our clients' varied rolling requirements. Our hydraulic plate rolling machines are built to effortlessly roll metal plates precisely and accurately.
The machine frame is fabricated from all tested steel plate material. A Die Penetration test is carried out on all weld joints to ensure sound weld quality. This frame is subjected to stress relieving, sand blasting and epoxy primer . painted for corrosion free long lasting machine life.( Primer paint 160 DFT). The complete body frame is machined in CNC machine to achieve built.

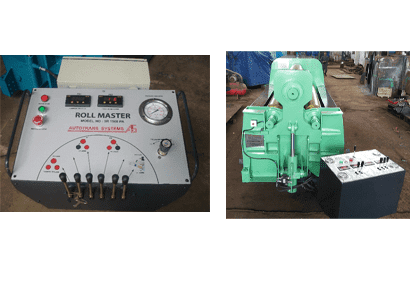

A tilt able control desk is conveniently located on machine. The main panel start / stop buttons and roll rotation fucntion (Reverse / forward) is provided on the same. The Top roll left side position and right side position are indicated separately by two digital meters
A specially designed & built mechanism allows drop end frame to tilt down in horizontal position without much efforts (one person can perform job). No need to dismantle frame from main body like in conventional machine. The top roll can be tilted to great degree of inclination making it most convenient and ease to remove rolled shells without any difficulty
All our machine rolls are mounted in heavy duty roller bearings. Each roller is fitted with two bearing per side (four bearing per roller)
A dual cone bending device can be provided as shown. The attachment provided between bottom rolls is suitable for narrow cone diameter. The attachment to be fitted on a main frame is suitable for cone having wide angle.
An extended rolls can be provided mounting dies to roll different section likes angle, chaneel , pipe, beam and flats etc.
The top roll can be tilted to great degree of inclination for ease of rolled shell removal
