Mechanical Operated Three Roll Single Pre Pinch Linear Axis Bending

Working Principle

Work Piece Squaring

Leading Edge Pre Bending

Plate Training Edge Re Insert

Training Edge Pre Bending

Rolling Start

Rolling In Progress

Rolling Complete

	3R SP _ _ _ _ LAMN	3R SP _ _ _ _ LAEM
MODEL TYPE	MANUAL	ELECTRO MECHANICAL
CONTROLS	HAND WHEEL/PUSH BUTTON	PUSH BUTTON
PRE BENDING	YES	YES
RANGE	1200 MM X 1 – 5 MM	2000 MM X 1 – 6 MM
PRODUCTION RATE ACTUAL ROLLING TIME	3 – 4 PCS/ HOUR	8 – 10 PCS / HOUR

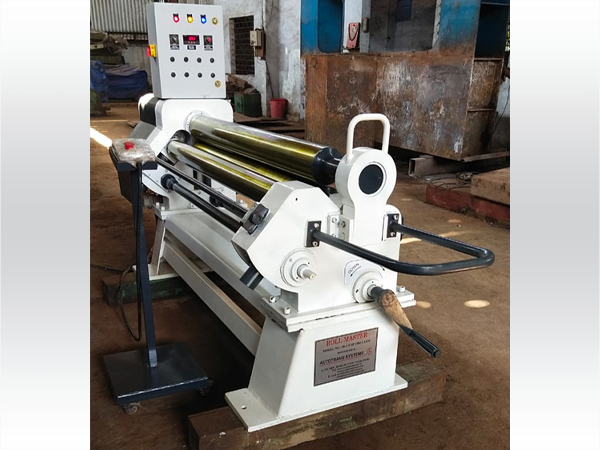

Mechanical Operated Three Roll Single Pre Pinch Linear Axis Bending or Rolling Machine – (Model No. 3R-SP----LAEM)

The machine is most economical model among all plate bending machine and is most useful for small fabrication shop. Both pre bending and rolling can be done in the same machine.

Advantages :

Suitable for both pre bending and rolling application
Specially developed low cost economical electro mechanical operated machine with motorized roll rotation and side roll up down movement for radius forming by push button. A perfect machine for small engineering work shop
Since all rolls are mounted in roller bearings the electrical consumption is less by 50% compared to conventional pyramid type machine with bush bearings.
User can be small engineering workshop willing to invest less still automate rolling.
Open type rolling requiring mass production qty.

Special Features

The machine frame is built from all tested steel plate material. This frame is subjected to stress reliving, sand blasting and epoxy primer painted for corrosion free long lasting machine life. The complete frame is machined in CNC machine to achieve built in accuracy

All our machine rolls are mounted in heavy duty roller bearings. Each roller is fitted with two bearing per side (four bearing per roller).

Both bottom roll clamping and side roll up down movements are through hand wheel rotation.

A digital roll position indicator is is provided to ascertain side roll position and there by rolling diameter.
The main panel start / stop buttons and roll rotation fucntion (Reverse / forward) is provided on Machine frame itself.

Both the top roll and bottom rolls are driven by separate gear box and motor directly mounted On roller shaf.

Standard Featues

Both the bottom rolls are driven rolls.
All rolls are manufactured in alloy steel material
Side roll up down movement for pre bending is fully motorized.
Separate digital roll position indicator for side roll
Manually operated drop end frame tilting for ease of job removal

Optional Featues

All 3 rolls positively driven for thin material rolling
Hardened rolls up to 52-55 RC
Tilt able top roll for ease of removal of duly rolled shells
Magnetic base electrical pendant for all around access to machine operation
PLC controls for automatic bending and rolling
Extended shaft for section rolling die mounting for rolling of section like angle, channel, beams, flats, pipes, bar etc.
Sinking type reference plate for initial reference while feeding the plate inside the machine.
Feeder table
